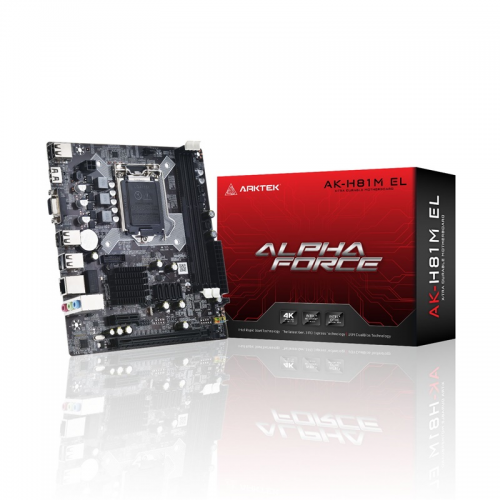

ARKTEK ALPHA FORCE, AK-H81M EL, 2xDDR3, M.2, D-SUB, HDMI, 4.Nesil, LGA1150 Soket, Anakart
2.039,16 TRY
Intel H81
+ Model: AK-H81M EL
+ Soket: LGA1150
+ Chipset: Intel H81
+ Bellek Desteği: Çift Kanal DDR3
+ Soket: LGA1150
+ Chipset: Intel H81
+ Bellek Desteği: Çift Kanal DDR3
genel bakış
- CPU Desteği: LGA1150 paketinde Intel® Core™ i7/i5/i3/Pentium®/ Celeron® işlemcileri destekler.
Intel 4. nesil çok çekirdekli işlemcileri destekleyin - Yonga Seti: Intel H81 Yonga Seti
- Yerleşik Grafikler: Entegre Grafik İşlemci
- Bellek: Çift Kanallı DDR3 1066/1333/1600MHz, ECC olmayan, tamponlanmamış belleği destekler
- DIMM: 2 x Bellek Yuvası (Maks. her biri 8 GB'a kadar)
- LAN: Yerleşik Realtek® RTL8105E 100 Mbps
- Ses: Yerleşik Realtek® 662 6 kanallı HD Audio Codec
- Ön Panel ses çıkışı, mikrofon girişi jakı
- SATA: 4 x SATA bağlantı noktası, 1 x M.2 Yuva
- Yerleşik Pin Başlıkları / Konnektörler:
1 x USB 2.0 pin başlığı, ek 2 USB 2.0 bağlantı noktasını destekler
1 x Ön Panel Ses pin başlığı - Yuvalar: 1 x PCI Express x16 yuvası, 1 x PCI Express x1 yuvası
- BIOS: UEFI BIOS
- Form Faktörü: Mikro-ATX (21cm X 21cm)
- Montaj: 6 montaj deliği
Spesifikasyon
| INTEL H81 | ||
|---|---|---|
| CPU Support | Support Intel® Core™ i7/i5/i3/Pentium®/ Celeron® processors in the LGA1150package. Support Intel 4th generation multi-core processors | |
| Chipset | Intel H81 Chipset | |
| On-Board Graphics | Integrated Graphics Processor | |
| Memory | Dual Channel DDR3 1066/1333/1600MHz, Supports non-ECC, un-buffered memory | |
| DIMM | 2 x Memory Slots (Max. up to 8GB each) | |
| LAN | Onboard Realtek® RTL8105E 100 Mbps | |
| Audio | Onboard Realtek® 662 6-channel HD Audio Codec Front Panel audio-out,mic-in jack | |
| SATA | 4 x SATA port, 1 x M.2 Port | |
| Back Panel I/O Ports | 1 x VGA port 1 x HDMI port 4 x USB 2.0 port 2 x USB 3.0 port 1 x LAN jack 3 x Audio jack (Line in / Line Ourt / Mic in) | |
| ON-Board Pinheaders /Connectors | 1 x USB 2.0 pinheader supports additional 2 USB 2.0 ports 1 x Front Panel Audio pinheader | |
| Slots | 1 x PCI Express x16 slot, 1 x PCI Express x1 slot | |
| BIOS | UEFI BIOS | |
| Form Factor | Micro-ATX (21cm X 21cm) | |
| Mounting | 6 mounting holes | |
| Accessories | 1 x SATA cable 1 x I/O Backboard 1 x User Manual 1 x Driver CD | |
| Remark | All specifications are subject to change without notice. Please check with your supplier for exact offers. Products may not be available in all markets. PCB color and bundled software versions are subject to change without notice. Brand and product names mentioned are trademarks of their respective companies. |
